1000V AC INSULATED SCREWDRIVERS-VDE TESTED AND GS APPROVAL
- Description
- Insulation is manufactured according to DIN 60900 and 100% VDE tested.
- Screwdrivers are produced according to DIN 7434, DIN 7438.
- SNCM steel with proprietary heat treatment.
- Insulated material: PP and TPR plastic.
- Character
- 1000V Insulated
Specifications
| PART NUMBER | POINT SIZE | DESCRIPTION | OVERALL LENGTH / IN. | OVERALL LENGTH / MM. |
|---|---|---|---|---|

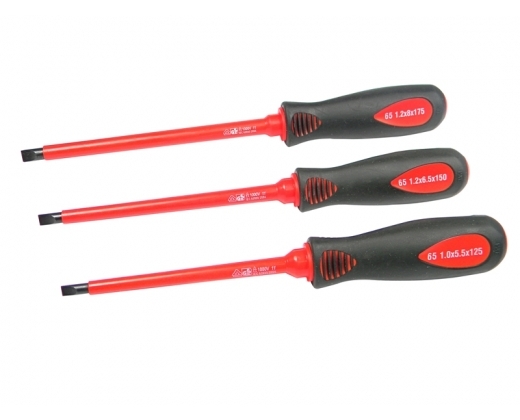

| 6500-1801 | 1.2X8.0X175MM | SLOTTED SCREWDRIVER | 11.6 | 295 |
| 6500-1651 | 1.2X6.5X150MM | SLOTTED SCREWDRIVER | 10.2 | 260 |
| 6500-1551 | 1.0X5.5X125MM | SLOTTED SCREWDRIVER | 9.2 | 235 |
| 6500-1401 | 0.8X4.0X100MM | SLOTTED SCREWDRIVER | 7.8 | 200 |
| 6500-1301 | 0.5X3.0X75MM | SLOTTED SCREWDRIVER | 6.3 | 162 |

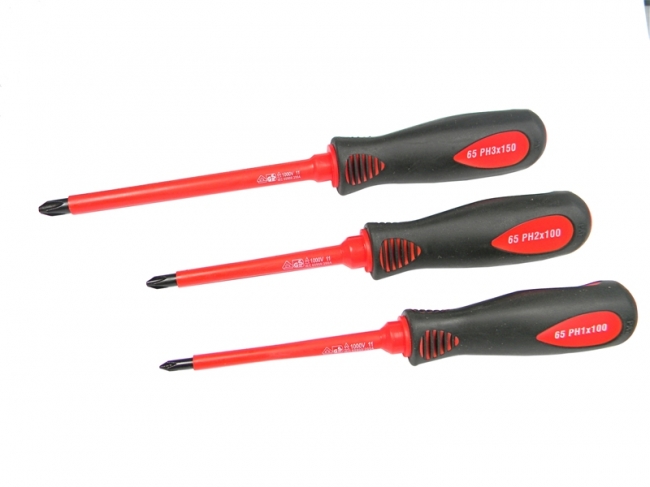

| 6500-0801 | PH#3X8.0X150MM | PHILLIPS SCREWDRIVER | 10.6 | 270 |
| 6500-0601 | PH#2X6.0X100MM | PHILLIPS SCREWDRIVER | 8.6 | 220 |
| 6500-0451 | PH#1X4.5X100MM | PHILLIPS SCREWDRIVER | 7.8 | 200 |
| 6500-0301 | PH#0X3.0X75MM | PHILLIPS SCREWDRIVER | 6.3 | 162 |
| 8100-1651 | 1.2X6.5X150MM | SLOTTED SCREWDRIVER | 9.7 | 247.5 |
| 8100-1551 | 1.0X5.5X125MM | SLOTTED SCREWDRIVER | 8.7 | 222.5 |
| 8100-1401 | 0.8X4.0X100MM | SLOTTED SCREWDRIVER | 7.2 | 183.5 |
| 8100-1251 | 0.4X2.5X85MM | SLOTTED SCREWDRIVER | 6.4 | 163.3 |
| 8100-0601 | PH#2X6.0X100MM | PHILLIPS SCREWDRIVER | 7.7 | 197.5 |
| 8100-0451 | PH#1X4.5X100MM | PHILLIPS SCREWDRIVER | 7.2 | 183.5 |
| 8100-0301 | PH#0X3.0X75MM | PHILLIPS SCREWDRIVER | 6.0 | 153.3 |
