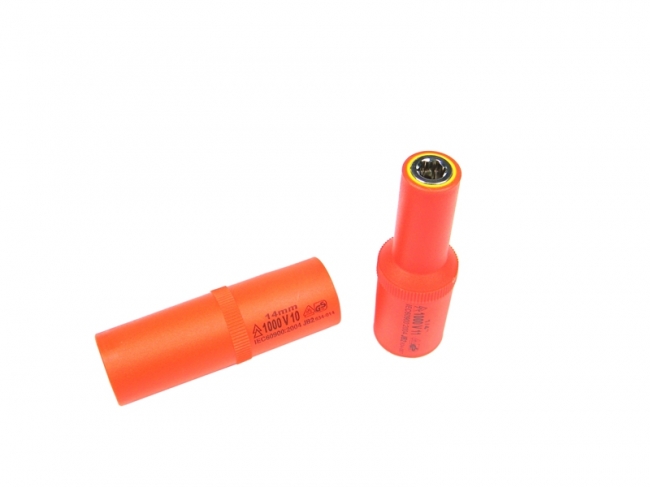

1000V AC INSULATED SOCKETS-VDE TESTED AND GS APPROVAL
- Description
- Insulation is manufactured according to DIN 60900 and 100% VDE tested.
- Extensions are produced according to DIN 7448, DIN 3120 AND DIN3124.
- Anti-rolling convex design.
- Chrome vanadium steel with proprietary heat treatment.
- Insulated material: PP an
- Character
- 1000V Insulated
Specifications
| PART NUMBER | DRIVE | DESCRIPTION | SQUARE SIZE / IN. | OVERALL LENGTH / IN. | OVERALL LENGTH / MM. |
|---|---|---|---|---|---|
| 634-007 | 3/8 | NON-POWER SOCKET-7MM | 3/8 | 2 1/8 | 55 |
| 634-008 | 3/8 | NON-POWER SOCKET-8MM | 3/8 | 2 1/8 | 55 |
| 634-010 | 3/8 | NON-POWER SOCKET-10MM | 3/8 | 2 1/8 | 55 |
| 634-012 | 3/8 | NON-POWER SOCKET-12MM | 3/8 | 2 1/8 | 55 |
| 634-014 | 3/8 | NON-POWER SOCKET-14MM | 3/8 | 2 1/8 | 55 |
| 638-010 | 1/2 | NON-POWER SOCKET-10MM | 1/2 | 3 | 77 |
| 638-012 | 1/2 | NON-POWER SOCKET-12MM | 1/2 | 3 | 77 |
| 638-013 | 1/2 | NON-POWER SOCKET-13MM | 1/2 | 3 | 77 |
| 638-014 | 1/2 | NON-POWER SOCKET-14MM | 1/2 | 3 | 77 |
| 638-017 | 1/2 | NON-POWER SOCKET-17MM | 1/2 | 3 | 77 |
| 638-019 | 1/2 | NON-POWER SOCKET-19MM | 1/2 | 3 | 77 |
| 638-022 | 1/2 | NON-POWER SOCKET-22MM | 1/2 | 3 | 77 |
| 638-024 | 1/2 | NON-POWER SOCKET-24MM | 1/2 | 3 | 77 |
