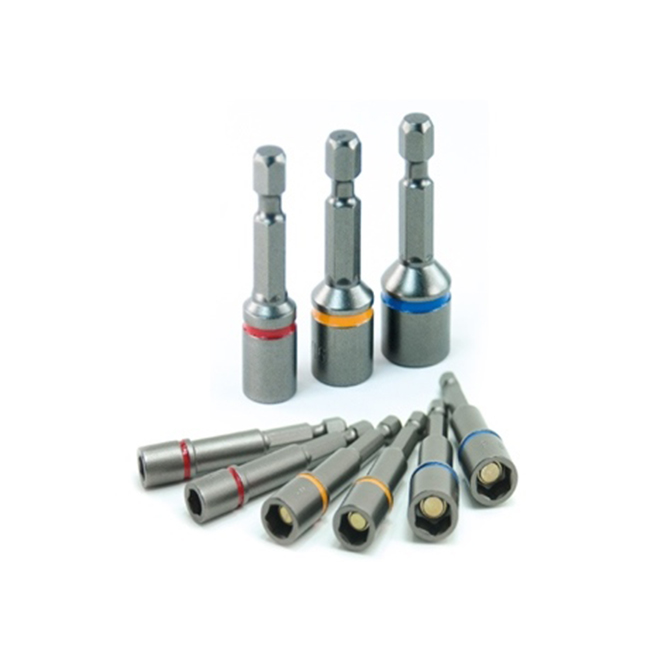

COLOR CODING MAGNETIC NUT SETTERS -6 POINT

Description: High quality S2 alloy steel, cold forge.; One pc construction with proprietary heat treatment process.; Universal, 1/4" hex shank fits all drills.

Character: With magnet and rust protection.; Ideal complement for any electrical or power screwdriver.; Hardness: HRC 58-60; Different size nut setters are with different color codings.; Custom logo can be imprinted on nose.

Add Inquiry List

Specifications

PRODUCT FEATURES • SAE COLOR CODING
PART NUMBER	DRIVE	SIZE / IN.	OVERALL LENGTH / IN.	OVERALL LENGTH / MM.
7000-MNS-045-1/4C	1/4	1/4	1 3/4	45
7000-MNS-045-5/16C	1/4	5/16	1 3/4	45
7000-MNS-045-3/8C	1/4	3/8	1 3/4	45
7000-MNS-045-7/16C	1/4	7/16	1 3/4	45
7000-MNS-050-1/4C	1/4	1/4	2	50
7000-MNS-050-5/16C	1/4	5/16	2	50
7000-MNS-050-3/8C	1/4	3/8	2	50
7000-MNS-050-7/16C	1/4	7/16	2	50
7000-MNS-050-1/2C	1/4	1/2	2	50
7000-MNS-065-1/4C	1/4	1/4	2 9/16	65
7000-MNS-065-5/16C	1/4	5/16	2 9/16	65
7000-MNS-065-3/8C	1/4	3/8	2 9/16	65
7000-MNS-065-7/16C	1/4	7/16	2 9/16	65
7000-MNS-065-1/2C	1/4	1/2	2 9/16	65
7000-MNS-100-1/4C	1/4	1/4	4	100
7000-MNS-100-5/16C	1/4	5/16	4	100
7000-MNS-150-1/4C	1/4	1/4	6	150
7000-MNS-150-5/16C	1/4	5/16	6	150

PRODUCT FEATURES • METRIC COLOR CODING
PART NUMBER	DRIVE	SIZE / MM.	OVERALL LENGTH / IN.	OVERALL LENGTH / MM.
7000-MNS-050-5.5C	1/4	5.5	2	50
7000-MNS-050-6C	1/4	6	2	50
7000-MNS-050-7C	1/4	7	2	50
7000-MNS-050-8C	1/4	8	2	50
7000-MNS-050-10C	1/4	10	2	50
7000-MNS-050-11C	1/4	11	2	50
7000-MNS-050-12C	1/4	12	2	50
7000-MNS-050-13C	1/4	13	2	50
7000-MNS-050-14C	1/4	14	2	50
7000-MNS-065-5.5C	1/4	5.5	2 9/16	65
7000-MNS-065-6C	1/4	6	2 9/16	65
7000-MNS-065-7C	1/4	7	2 9/16	65
7000-MNS-065-8C	1/4	8	2 9/16	65
7000-MNS-065-9C	1/4	9	2 9/16	65
7000-MNS-065-10C	1/4	10	2 9/16	65
7000-MNS-065-11C	1/4	11	2 9/16	65
7000-MNS-065-12C	1/4	12	2 9/16	65
7000-MNS-065-13C	1/4	13	2 9/16	65
7000-MNS-065-14C	1/4	14	2 9/16	65
7000-MNS-150-5.5C	1/4	5.5	6	150
7000-MNS-150-6C	1/4	6	6	150
7000-MNS-150-7C	1/4	7	6	150
7000-MNS-150-8C	1/4	8	6	150
7000-MNS-150-9C	1/4	9	6	150
7000-MNS-150-10C	1/4	10	6	150
7000-MNS-150-11C	1/4	11	6	150
7000-MNS-150-12C	1/4	12	6	150
7000-MNS-150-13C	1/4	13	6	150
7000-MNS-150-14C	1/4	14	6	150
