IMPACT BITS W/COLOR RINGS

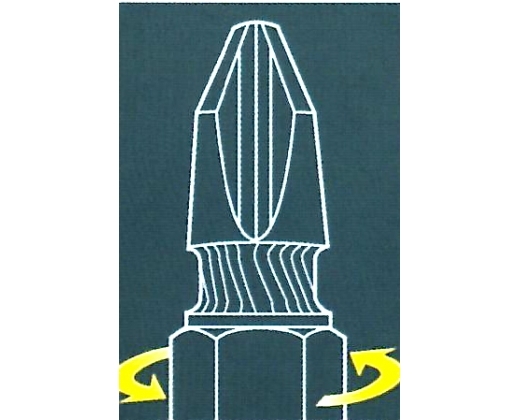

Description: S2 modified alloy steel with proprietary heat treating process.; Extraordinary design of the turn down groove makes impact bits elastic,provides 40% more breaking angle, more absorbing impact ability in peak loading.; Twice or more as durable as other bit

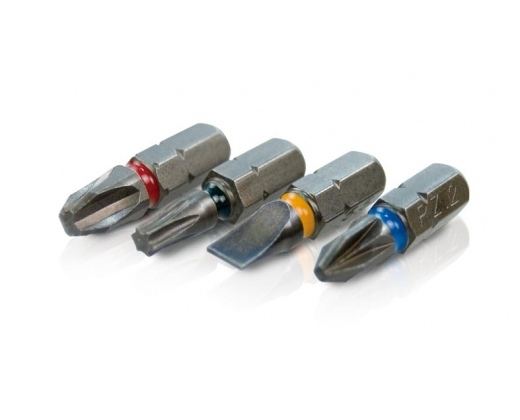

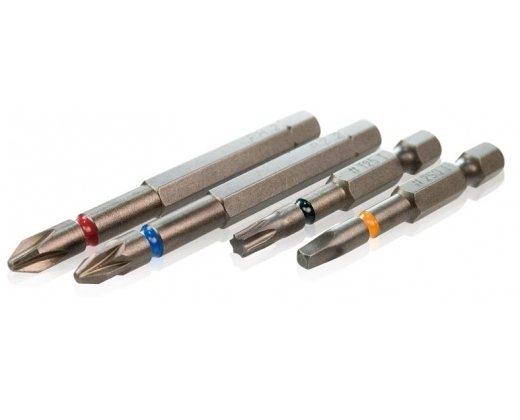

Character: Color rings identify bit tip sizes.; Ideal complement for any electrical or power screwdrivers.

Add Inquiry List

Specifications

PRODUCT FEATURES • IMPACT GRADE INSERT BIT
PART NUMBER	DRIVE	POINT SIZE	LENGTH / MM	LENGTH / INCH

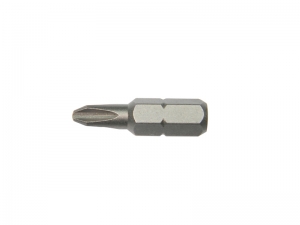

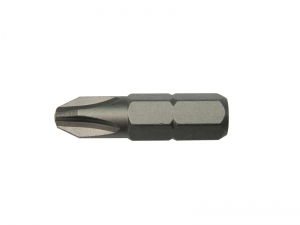

BP-025-00 I	1/4	PH#0	25	1
BP-025-01 I	1/4	PH#1	25	1
BP-025-02 I	1/4	PH#2	25	1
BP-025-03 I	1/4	PH#3	25	1
BZ-025-00 I	1/4	POZI#0	25	1
BZ-025-01 I	1/4	POZI#1	25	1
BZ-025-02 I	1/4	POZI#2	25	1
BZ-025-03 I	1/4	POZI#3	25	1

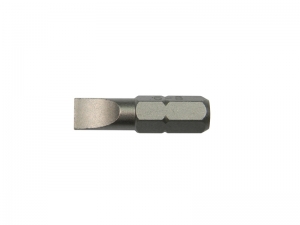

BS-025-M3.0 I	1/4	SLOTTED 3.0MM	25	1
BS-025-M4.5 I	1/4	SLOTTED 4.5MM	25	1
BS-025-M5.0 I	1/4	SLOTTED 5.0MM	25	1
BS-025-M5.5 I	1/4	SLOTTED 5.5MM	25	1
BS-025-M6.0 I	1/4	SLOTTED 6.0MM	25	1
BS-025-M6.5 I	1/4	SLOTTED 6.5MM	25	1

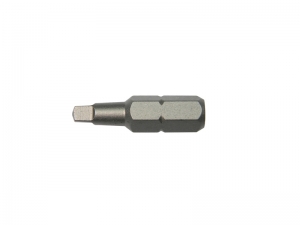

BR-025-01 I	1/4	SQUARE #1	25	1
BR-025-02 I	1/4	SQUARE #2	25	1
BR-025-03 I	1/4	SQUARE #3	25	1

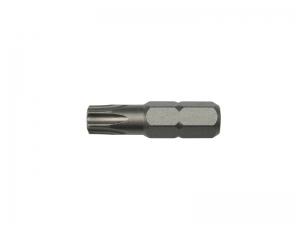

BT-025-07 I	1/4	TORX T7	25	1
BT-025-08 I	1/4	TORX T8	25	1
BT-025-09 I	1/4	TORX T9	25	1
BT-025-10 I	1/4	TORX T10	25	1
BT-025-15 I	1/4	TORX T15	25	1
BT-025-20 I	1/4	TORX T20	25	1
BT-025-25 I	1/4	TORX T25	25	1
BT-025-30 I	1/4	TORX T30	25	1
BT-025-40 I	1/4	TORX T40	25	1

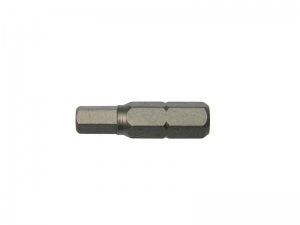

BX-025-M2.0 I	1/4	HEX 2.0MM	25	1
BX-025-M2.5 I	1/4	HEX 2.5MM	25	1
BX-025-M3.0 I	1/4	HEX 3.0MM	25	1
BX-025-M4.0 I	1/4	HEX 4.0MM	25	1
BX-025-M5.0 I	1/4	HEX 5.0MM	25	1
BX-025-M6.0 I	1/4	HEX 6.0MM	25	1

PRODUCT FEATURES •IMPACT GRADE POWER BIT
PART NUMBER	DRIVE	POINT SIZE	LENGTH / MM	LENGTH / INCH
BP-050-00 I	1/4	PH#0	50	2
BP-050-01 I	1/4	PH#1	50	2
BP-050-02 I	1/4	PH#2	50	2
BP-050-03 I	1/4	PH#3	50	2
BZ-050-00 I	1/4	POZI#0	50	2
BZ-050-01 I	1/4	POZI#1	50	2
BZ-050-02 I	1/4	POZI#2	50	2
BZ-050-03 I	1/4	POZI#3	50	2
BS-050-M3.0 I	1/4	SLOTTED 3.0MM	50	2
BS-050-M4.5 I	1/4	SLOTTED 4.5MM	50	2
BS-050-M5.0 I	1/4	SLOTTED 5.0MM	50	2
BS-050-M5.5 I	1/4	SLOTTED 5.5MM	50	2
BS-050-M6.0 I	1/4	SLOTTED 6.0MM	50	2
BS-050-M6.5 I	1/4	SLOTTED 6.5MM	50	2
BR-050-01 I	1/4	SQUARE #1	50	2
BR-050-02 I	1/4	SQUARE #2	50	2
BR-050-03 I	1/4	SQUARE #3	50	2

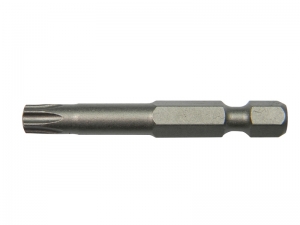

BT-050-10 I	1/4	TORX T10	50	2
BT-050-15 I	1/4	TORX T15	50	2
BT-050-20 I	1/4	TORX T20	50	2
BT-050-25 I	1/4	TORX T25	50	2
BT-050-30 I	1/4	TORX T30	50	2
BT-050-40 I	1/4	TORX T40	50	2

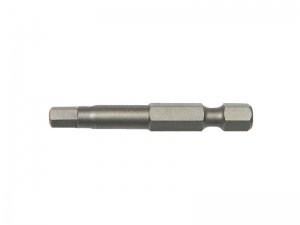

BX-050-M2.0 I	1/4	HEX 2.0MM	50	2
BX-050-M2.5 I	1/4	HEX 2.5MM	50	2
BX-050-M3.0 I	1/4	HEX 3.0MM	50	2
BX-050-M4.0 I	1/4	HEX 4.0MM	50	2
BX-050-M5.0 I	1/4	HEX 5.0MM	50	2
BX-050-M6.0 I	1/4	HEX 6.0MM	50	2
